Name: Tank Side Monitor NRF590
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Predecessor

NRF561

Successor

F

L

E

X

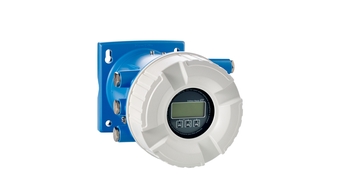

Tank side Monitor NRF81

Field gateway for tank sensor operation, monitoring and integration into inventory control system
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

Field gateway for tank sensor operation and monitoring and integration into inventory control system;
Power supply and signal converter for FMR5xx
Specialities

Hydrostatic Tank Gauging (HTG)
Supply / Communication

AC: 55...264 VAC
Ambient temperature

Standard:
-40°C…60°C
(-40°F...140°F)
For calibration to regulatory
standards:
-25°C…55°C
(-13°F...131°F)
Communication

Outputs:
Fieldbus: Modbus RS485, V1, WM550, L&J, Mark Space, Enraf BPM, GPE, HART Analog 4-20mA (Exi/Exd),
Relay (Exd/Exi)
Discrete output Exd/Exi)
Inputs:
Analog 4-20mA(Exd),
2-, 3-, 4-wire RTD,
Discrete input (Exd/Exi passive/active)
Certificates / Approvals

ATEX, FM, CSA, TIIS, NEPSI
Metrological approvals and certificates

OIML, NMi, PTB
Options

Weather protection cover
mounting kit pipe

We value your privacy

We use cookies to enhance your browsing experience, collect statistics to optimize site functionality, and deliver tailored advertisements or content.

By selecting "Accept all", you consent to our use of cookies.
For further details please review our privacy policy .

Language:	Language neutral
Version:	08/12/2023
File size:	240.6 MB
File name:	EH_Tank_Side_Monitor_NRF_590_V2_04_xx.zip

	EN
10/05/2016
19/11/2015
07/02/2014
30/11/2010
13/10/2008

Language:	English
Version:	10/05/2016
File size:	934.4 KB
File name:	TI00402FEN_1616.pdf

Language:	English
Version:	03/04/2008
File size:	2.7 MB
File name:	TI419FEN_05.08.pdf

	EN
07/02/2014
13/10/2008
21/07/2006
08/11/2005
20/06/2005

	EN
03/04/2008

	EN
01/03/2006
14/04/2003

	EN
20/04/2021

	EN
20/04/2021

Tank Side Monitor NRF590

Predecessor

Successor

Tank side Monitor NRF81

Characteristic / Application

Specialities

Supply / Communication

Ambient temperature

Communication

Certificates / Approvals

Metrological approvals and certificates

Options

Back

Device Type Manager (DTM) - Tank Side Monitor - HART

Tank Side Monitor NRF590 Technical Information

Tankvision NXA820, NXA821, NXA822

NRF590 - Description of Instrument Functions

Tank Side Monitor NRF590 Operating Instructions

NRF 590 - GPE communication protocol

NRF590 - Exchange of display, display support

NRF590 - Exchange of I/O module

NRF590 - Exchange of EEx d terminal module

NRF590 - Exchange of f EEx i terminal module

NRF590 - Exchange of main board, communication board

Back

Cover T16"Z" Alu, window, gasket

Cover F22 Alu, gasket

Cover T16"Z" Alu, gasket

PC board NRF590, 18-55V AC/DC

PC board NRF590, 55-264VAC

Digital input module 90-140VAC

Digital input module 180-280VAC

Digital input module 3-32VDC

Digital input module 35-60VAC/DC

Digital input module 90-140VAC

Digital input module 180-280VAC

Digital input module 3-32VDC

Digital input module 35-60VAC/DC

Digital output module 24-140VAC

Digital output module 24-280VAC

Digital output module 3-60VDC

Digital output module 4-200VDC

Digital output module 0-100VDC/0-120VAC

Digital output module 24-140VAC

Digital output module 24-280VAC

Digital output module 3-60VDC

Digital output module 4-200VDC

Digital output module 0-100VDC/0-120VAC

PC board NRF590, terminal EEx i

PC board NRF590, terminal TIIS Ex d

PC board NRF590, terminal EEx d, V.2

Terminal set NRF590

PC boards NRF590

Holder, display + I/O-module NRF590

Isolation plate NRF590, 2 pieces

Display-/operating module NRF590

Cable gland PA, M25, 2 pieces

Blind plug, Alu, NPT3/4, 4 pieces

Blind plug, Alu, NPT1/2, 4 pieces

Blind plug, St/Zn, G1/2, 4 pieces

Blind plug, St/Zn, M20, 2 pieces

Sealing kit NRF590

ToF Adapter FXA291

Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60
