Specs at a glance
-
Measuring range
0.1 to 10 mg/l total chlorine
-
Process temperature
5 to 45 °C
(41 to 113 °F) -
Process pressure
1 to 4 bar (14.5 to 58 psi)
-
Measuring method
Total chlorine consists of free chlorine (HOCl, OCl-) and bound chlorine (chloramines)
All components are reduced at the working electrode
Almost pH independent
Field of application

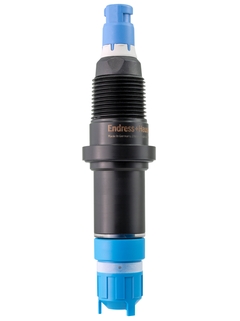

Total chlorine is the mixture of free and bound chlorine components and thus a good indicator of residual disinfectants in discharge water. The sensor Memosens CCS120D provides reliable monitoring of total chlorine limits in the outlet. It reduces your maintenance effort due to easy replacement of electrolyte and membrane cap. Memosens CCS120D is not the latest Memosens generation. More information on the new sensor Memosens CCS53E.
Memosens CCS120D measures total chlorine in:
Wastewater treatment plants- Disinfection monitoring and control in wastewater outlet- Reuse of outlet water
Utilities of all industries- All disinfection measuring points
Benefits
Easy handling thanks to Memosens digital technology
Enables predictive maintenance due to storage of sensor and process-specific data
Low maintenance thanks to fast exchange of membrane cap and electrolyte
-

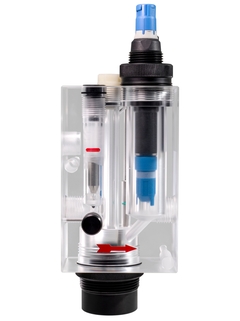

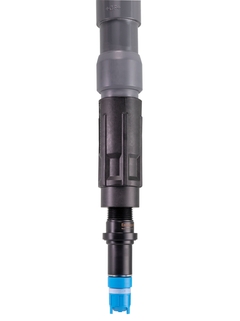

Flexible installation in CYA112 immersion assembly or CCA250 flow assembly
-
Easy combination with other relevant parameters of liquid analysis thanks to connection to the Liquiline multichannel transmitter
